8mm Momentary Metal Push Button Switch Waterproof 2A Low Current

value : Protection Classification IP65, and can be made to IP67 upon request

MOQ : 1000

Delivery Time : 30

Payment Terms : T/T

parameter : Sealing

Contact Now

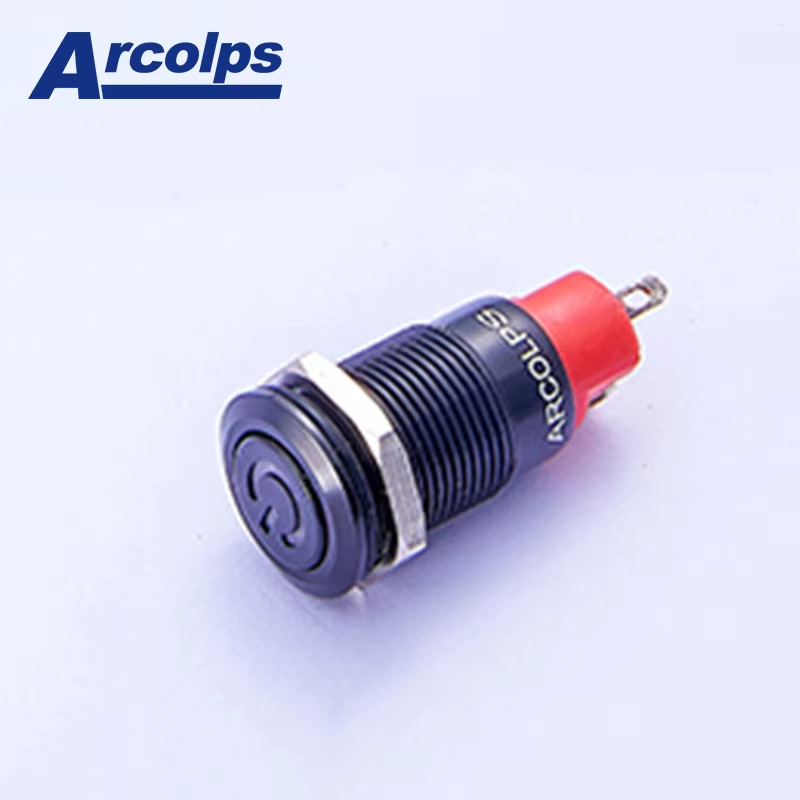

Arcolps 8mm Waterproof Momentary Metal Push Button Switch

8mm Waterproof Momentary Metal Push Button Switch 2A Low Current

The Arcolps 8mm Waterproof Momentary Metal Push Button Switch is a compact and reliable solution for low-current applications. With a 2A, 250V rating, this switch is ideal for small electronic devices and control panels. Its IP65 waterproof rating ensures durability in various environments.

Compact 8mm mounting diameter
IP65 Waterproof protection
2A, 250V Electrical rating
Reliable momentary operation

8mm Momentary Metal Push Button Switch Waterproof 2A Low Current

Product Attributes

FOB Unit

Piece

FOB Price

$1.0

Packaging & Delivery

Custom options available

Technical Specifications

Parameter	Value
Model Number	830108
Rating	2A 250V T105
Operating Temp. Range	-25℃±105℃
Contact Resistance	≤50mΩ
Insulation Resistance	≥1000MΩ
Dielectric Strength	Contact to Panel≥2000V, Contact to Contact 1500V
Mechanical Life	200000 Cycles
Electrical Life	50000 Cycles
Sealing	IP65 (IP67 upon request)

Product Tags:

8mm Momentary Metal Push Button Switch

Momentary Metal Push Button Switch Waterproof

2A 8mm Metal Push Button Switch

8mm Momentary Metal Push Button Switch Waterproof 2A Low Current Images
